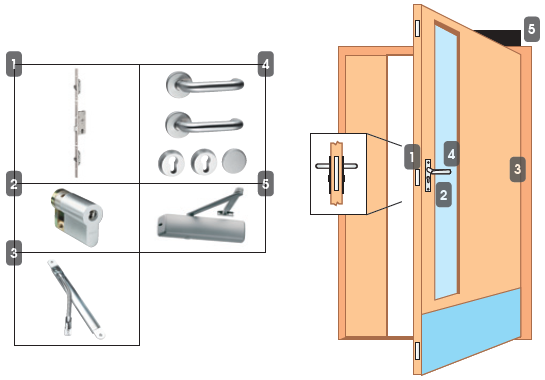

Package 1ME Multipoint – EL566 Multipoint Solenoid Lock

Wood or metal door applications with handle operation, inside handle always operates and the outside
handle is controlled and activated on signal from access control system. Key override at all times from
outside.

Technical Specification:

Operating voltage: 12 V dc to 24 V dc stabilised (+15%-10%)
Current draw: 12 V dc 350 mA max 24 V dc 250 mA max
Backsets available: Standard 65 mm, 55 mm, 60 mm
Monitoring: RQE on inside handle, bolt position, door position, cylinder operation

Standards:

EN179 when used with correct furniture
EN12209
EN1634-1
EN61000-6-1
EN1303 (cylinder)
EN14846
